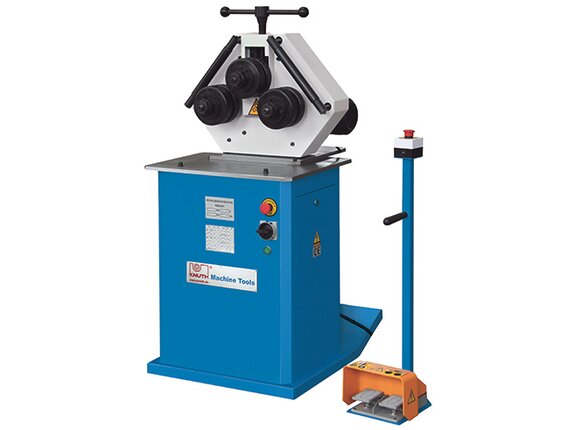

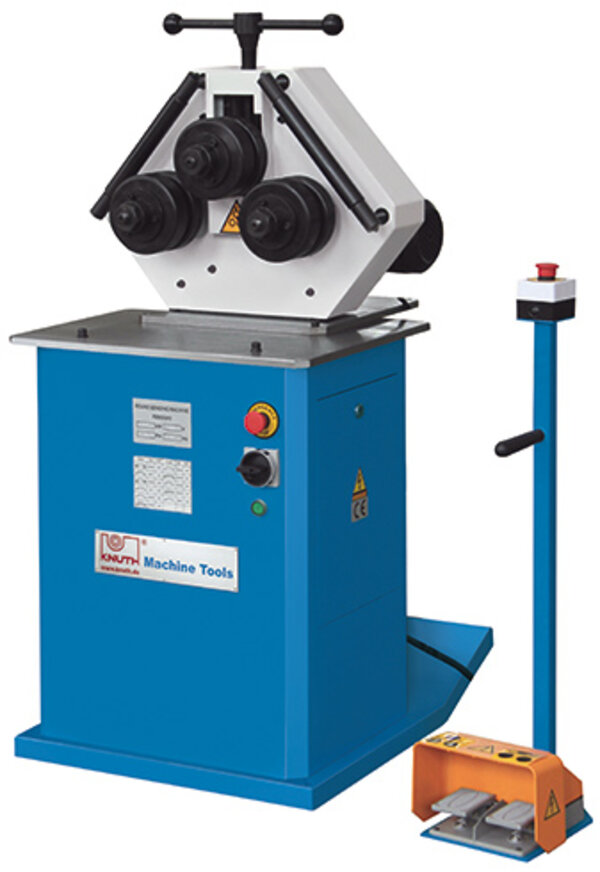

TUBE AND PROFILE ROLLING MACHINE

KPB 30

SKU : 130135
Sample product
€2.850,00 -16% €2.390,00
Only 1 in stock - quick delivery!

The KPB series is a ring and profile bending machine for universal applications that can be used both horizontally and vertically. Thanks to the powerful motorised drive of the fixed lower rollers and the manual adjustment of the upper roller to determine the bending diameter, these machines, including foot pedal switch, are immediately ready for use for standard profiles.The proven concept of the tool milling machine has found its widest distribution in this design and has proven itself in many productions. As a universal milling machine with vertical and horizontal spindle, swivelling vertical head, quill stroke and large horizontal and vertical clamping surface, it is particularly flexible and can be used for complex applications. It is ideal for tool and mould making, for repair workshops and for training and production departments.

Working area
Shaft diameter 30 mm
Roll diameter 148 mm
Bending speed 4,2 m/min
Drive capacity
Motor rating main drive 0,75 kW
Measures and weights
Weight 224 kg
Length 1200 mm
Width 750 mm
Height including base 1210 mm

Low-cost Ring and Profile Benders for universal applications

  • Both rolls feature a fixed position and a powerful motorized drive
  • The operator sets the workpiece’s bending diameter via manual feed of the upper roll
  • The machine can be used both horizontally and vertically
  • The included profile roller set has to be adjusted according to the machine power when bending flat and angle irons or T and U profiles
  • Custom rollers are required for machining round tubes. These are not offered by the manufacturer
  • Steel rollers are suitable for bending steel pipes, however, for bending of stainless steel we recommend the use of polyamide rollers
  • A foot pedal control is included for convenient operation

Control panel SKU:
Control panel
Control panel SKU:
Operating tools
Operating tools SKU:
Operator instructions
Operator instructions SKU:
Foot pedal with emergency stop switch
Foot pedal with emergency stop switch SKU:
